AiMesh on a T-Mobile AC-1900

The wifi in my house can best be defined as tolerable. Occasionally, for no reason I can decipher, it’s great, but there are dead spots and other issues. A lot of it has to do with plaster in the walls I assume, even though I’ve got an Asus RT-AC68U, and a couple of Airport Extremes distributed around. I’ve been considering replacing it all with a mesh router system from Eeero, Google, etc. but they’re pricey and I’m not convinced it’ll fix anything (ever the sceptic). A pair of stories changed that this week. First, Asus released a firmware update to allow their RT-AC68U (and other) routers to be part of a mesh network. Second, refurbished T-Mobile AC-1900 routers (which are just a rebranded RT-AC68U) were on sale for $50. So I took a chance and snagged one.

NOTE: This procedure worked for me, but I started with a modified CFE, copied from my existing RT-AC68U to make it work.  As soon as you put a non-standard firmware on your router, your warranty is over, and you might have a brick on your hands.  The risk is all yours.

What you’re doing in all of this is two parts, you’re replacing the T-Mobile CFE, which is the low-level code and details that get the router started, with one from an official Asus RT-AC68U.  The hardware is the same, the CFE describes it differently and enables the hardware to do its thing.  Next, you’re updating the firmware with one from Asus that does what you want.  When complete, the T-Mobile router will claim to be an Asus RT-AC68U.

I googled around and found various posts related to flashing the AC-1900 to be able to accept normal Asus firmware updates. These were mostly from people who spend a lot of time mucking around with their routers, so their instructions are often lacking much explanation or background.  Hopefully this post will help out the more casual hobbyist, like me.

The main sources for a working procedure came from this excellent post from goggles99, which is really 99% of the process that worked for me and about 1/10th the size of this post. https://www.snbforums.com/threads/aimesh-on-the-t-mobile-tm-ac1900.43278/page-4#post-358280

I also got a good idea of what was going on from http://www.bayareatechpros.com/ac1900-to-ac68u/ although following their process never fully worked for me and I never could figure out why, but rather than use the online CFEditor, once I decided to just copy the CFE from my old router, I was successful.  One thing that’s really nice about CFEditor though, is that it’s a quick and easy way to see your MAC addresses from your new router.  Just upload the CFE from the AC-1900 (details, below) and it’ll show them. Obviously, if you want, you can pick a new Source CFE version, and generate a new file to use.  Easier than manually editing.  YMMV.

If you’ve already got an official Asus RT-AC68U, then rather than trust the internet, you can copy the CFE from that to put on your AC-1900. If you don’t have one, maybe you just bought a couple of the T-Mobile AC-1900’s, then you’ll need to get a copy of a CFE from this CFE Dumps page.

I first updated the firmware on my existing RT-AC68U by downloading the firmware file from Asus (you’ll need this later, so keep the file locally – the one I downloaded was RT-AC68U_3.0.0.4_384_10007-g8e859e9.trx) and then upgrading from the file. No problem, and when complete, by default it was set to be used as the mesh Router.  In simple terms, this is the hub and any other devices in the mesh are Nodes that connect back to it.

I also backed up my router configuration in case I did something stupid along the way.

Enable ssh to your router by going to http://router.asus.com, under the Administration menu, System tab.  I’m on a Mac, so I just use Terminal for all my ssh/scp needs – if on Windows, use Putty.  If on Linux, I’ll assume you don’t need any of my help at this level.

$ ssh admin@router.asus.com
admin@RT-AC68U:/tmp/home/root# cat /dev/mtd0 > rt68u_cfe.bin
admin@RT-AC68U:/tmp/home/root# exit
Connection to router.asus.com closed.
$ scp admin@router.asus.com:rt68u_cfe.bin .

Next, I turned on the AC-1900, plugged into my laptop directly (not on your LAN with the other router, turn of wifi), and enabled ssh on it as well, and did the same thing to make a backup of its original CFE.

$ ssh admin@192.168.1.1
admin@AC-1900:/tmp/home/root# cat /dev/mtd0 > original_ac1900_cfe.bin
admin@AC-1900:/tmp/home/root# exit
Connection to router.asus.com closed.
$ scp admin@192.168.1.1:original_ac1900_cfe.bin .

When that’s done, you’ll have a copy of your rt68u_cfe.bin and your original_ac1900_cfe.bin file.  Next you’ll need a hex editor to modify the rt68u_cfe.bin.  I used HexFiend, but there are other tools, such as CFE Editor listed on this page in the Tools section.

Open both the original_ac1900_cfe.bin file and the rt68u_cfe.bin file in your editor.  You’ll be copying the MAC addresses (3 of them) from the AC-1900 to your RT-AC68U.

  1. Search for “mac” in the AC-1900 file, you’ll find 3 instances of MAC addresses
  2. Copy each of them to the same relative location in the RT-AC68U file
  3. Use Save As to save the RT-AC68U file as rt68u_mod_cfe.bin

Next, you’ll copy your modified RT-AC68U CFE back to your AC-1900, along with the mtd-write script located in the MTD-WRITE section of this page.

First, copy all the files you need to your router (the AC-1900)
$ scp rt68u_mod_cfe.bin mtd-write RT-AC68U_3.0.0.4_384_10007-g8e859e9.trx admin@192.168.1.1:
$ ssh admin@192.168.1.1

Next, make mtd-write executable…
admin@AC-1900:/tmp/home/root# chmod u+x mtd-write

Write the modified CFE to the device using mtd-write…
admin@AC-1900:/tmp/home/root# ./mtd-write rt68u_mod_cfe.bin boot

Update the firmware using mtd-write2 (which is already on the device – at least it was for me)…
admin@AC-1900:/tmp/home/root# ./mtd-write2 RT-AC68U_3.0.0.4_384_10007-g8e859e9.trx linux

Clear out the nvram and reboot…
admin@AC-1900:/tmp/home/root# mtd-erase2 nvram
admin@AC-1900:/tmp/home/root# reboot

At this point, your AC-1900 should reboot, claim itself to be an RT-AC68U, and have the latest firmware on it. As a last step in all of this, I went ahead and held the reset button for 5-10 sec, forcing a reset to factory settings (which is probably unnecessary, but I did it anyhow).

Now, before doing anything else, disconnect from your new router, get back on your LAN (wired or wifi) and log in to your existing router. On the Network Map page, there’s an AiMesh button under your Clients list. Click that, and the right tab will let you Find AiMesh nodes. Click the Search button and your new router should show up as an RT-AC68U. Select it an Add it as an AiMesh node. When done, it’ll be part of your mesh.

All that got a little longwinded, but hopefully it explains some of the process and gets yo up and running. Thanks to all the people who did the real work to make this possible.

High Volume Photo Management

When my eldest child started swimming on a team at at 6, I brought my camera to the meet, like a good dad. Since I had invested in good lenses (Canon 100-400 f4.5-5.6L and 70-200 f2.8L) I was getting some pretty good shots. It took some time to develop my skills and figure out the timing to anticipate when the swimmer will be breathing, but I kept getting better by simply taking photos of more than just my kid.

Darien in 2006

Didn’t take long to be designated the team photographer and, since I was at the meets already with my gear, it wasn’t a big lift to start shooting all of the swimmers. Following a typical meet, I would have between 500 and 700 photos to sort through and this also required some new skills – metadata tagging and photo culling.

With video-game like reflexes, I can go through a set of photos and quickly identify whether there’s anything worth keeping – no face, no sale – and mark it for removal. Then the more difficult task – delete everything marked. Trash it. Delete from disk and don’t look back. That drops the total to 200-400 or so shots remaining. So, I’m done, right? Not quite.

Another Craig swimmer takes to the blocks

Shooting kids, ages 6-18 or so in bathing suits, both in and out of the water adds a higher bar for publishing. I have no intention of publishing or keeping anything that’s embarrassing or inappropriate. Teenagers have a hard enough time dealing with their body image and bullying and there are too many opportunities for these to mix in these situations. That, and I’m not a creep. Another pass through the remaining photos, slower this time, looking not just at the primary subject, but all around the photos. If it feels wrong, it’s gone. Delete from disk and don’t look back.

The rules of the process for dealing with a large volume of photos will change, but the process needs to be simple and definitive. The triggers to keep/delete will be different for a model shoot or other situations, but for a lot of photos, you’ll bury yourself in photos and never find the real keepers if you don’t make the effort to clean out the losers early.

My nemesis, however, is the GoPro. I used it heavily for one season, taking burst photos (10-30 at a time), which simply gave me more photos than I could handle. I never really developed a good way to differentiate and decide on “the best” of any given burst. Picking out the obvious duds or obviously inappropriate ones was pretty easy, but that still leaves many, many more that should be dealt with. Problem still unsolved.

I’ve been shooting swim and some dive meets for twelve years now and have about 17,000 photos in the collection. You can visit the galleries and decide how well my skills have developed over the years. Most are taken with the 100-400 lens because it allows me to shoot reliably from basically anywhere around the pool. A monopod is an absolute must have option too. And I always shoot with a flash to pick up facial features as well as get some good reflections off the water.

Unexpected college challenge

My son’s headed to college in about a month, and I’m realizing just how much I’m going to miss being able to discuss purely geeky things with him. My wife’s eyes will glaze over instantly when I tell her about the cool process I got working on AWS with Vagrant, Ansible, and…whatever, she stopped listening at “process” anyhow.

Darien didn’t necessarily get it, but he listened, sometimes just politely, but generally with interest, and he asks questions. And he poked around with enough things out there that he has been finding new and interesting topics too. He also asked enough questions to drive new approaches and ideas into the topic. He’s always been my geek buddy, but it’s only been the past couple of years where he’s been at a high enough level of knowledge that any topic was fair game, and spending so much time at home this past year, I expect to be able to talk with him almost any time.

My daughter doesn’t realize what she’s in for as I seek out a new outlet. I presume that I’ll be spending more time in the robotics team’s “chatter” channel on Slack too.

Steep learning curve

Switching gears from managing teams and doing fairly high level business and technology system design form many years, I’m finding myself having to get deep into many different technologies that I knew about, but didn’t actually know. This isn’t bad, per se, but it is daunting. The technology landscape for building a complex data driven system, with multi device front ends, analytics, security, and a supportable, distributable (i.e. cloud based) environment from scratch narrows my technology search down to a few million items. Different languages don’t really scare me (despite not really being up on any of them), but every language comes with a plethora of frameworks and development tools that also need to be learned. Development patterns change with each selection and the ability to make an informed decision (without a well versed team around who can call BS when appropriate) is a major challenge. Hello World! applications aren’t going to tell me whether the application will be able to distribute amongst multiple back end providers and maintain an acceptable database throughput and remain stable.

So I’m in the midst of not so much evaluating technology based on their actual capabilities, but based on the risk level each brings, assessed by the capabilities I can infer from very limited use. Some decisions are pretty easy, despite minimal experience with them. We’ll be using node.js for many of our back end elements. Why? It meets the design needs, has a reasonably comprehensive ecosystem, and I’m convinced it’s moving forward, not stagnating. I’m a believer in lightweight frameworks and that tends to be the mindset of the developer base.

What about Ruby/Rails? Not out of the question, and will probably be part of the mix, but it’s not going to be primary unless somebody shows up on the team and can knock some things out of the park quickly with it, and we can develop appropriate strategies for scaling.

Yes, there are a ton of options, but so far, it’s just little old me making these decisions, so aside from calling friends and asking them dumb questions about the tools, I’m going on gut feeling of what can produce a viable product without a short street with a dead-end.

3d Printer

Despite our desire to build one, I finally accepted the fact that Darien and I were never going to find the time, so I took a chance on the Monoprice Maker Select i3 (which is actually a Wanhao Duplicator i3 printer). It’s my first real hands-on experience with a 3d printer, so I can’t compare to other models, but it seems to work reliably and I’m learning about the printing process, which was the primary goal anyhow.

This is an entry level printer. Period. I’m not sure where the real limitations will occur, but I’m confident that they’ll be there once I know what I’m doing. It’ll probably be accuracy of higher resolution prints. So far, printing high resolution hasn’t resulted in significantly better prints, just slower ones, and in some cases much worse quality. I’ve found 3dPrinterBrain to be an invaluable source of information.

What am I going to do with a 3d printer? Robotics is one area where I’ve already started to make use of it. I’m now coaching FIRST Robotics Competition (FRC) Team 4026 and we’ve had a number of problems that were fairly easily solved with a quick design and print (OK, prints are never quick).

Some of my more interesting and useful prints so far.

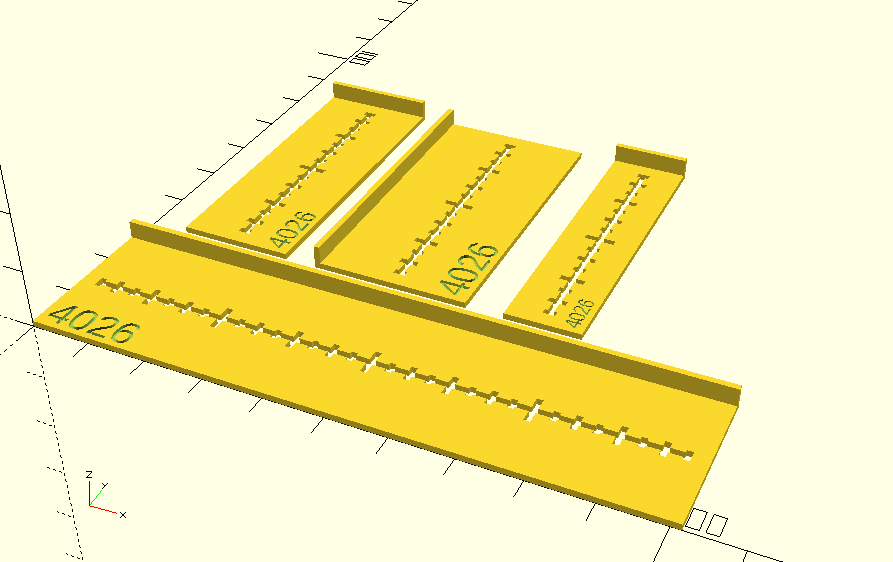

The killer in this bunch as been the marking guides for the aluminum tubing. They’ve been a godsend. Saves a ton of time when trying to make accurate holes (need 4 1/4″ holes, spaced 1″ apart, set 1/2″ from the edge of the tube, starting at 1/2″ from the end). Previously doing that with clumsy tools, tape measures, calipers, a compass, and lots of cursing could take an hour for a single part. Then, any inaccuracies were multiplied by drill press sloppiness.
